PRODUCTS WE OFFER
PathTrue™ Solvent Recyclers

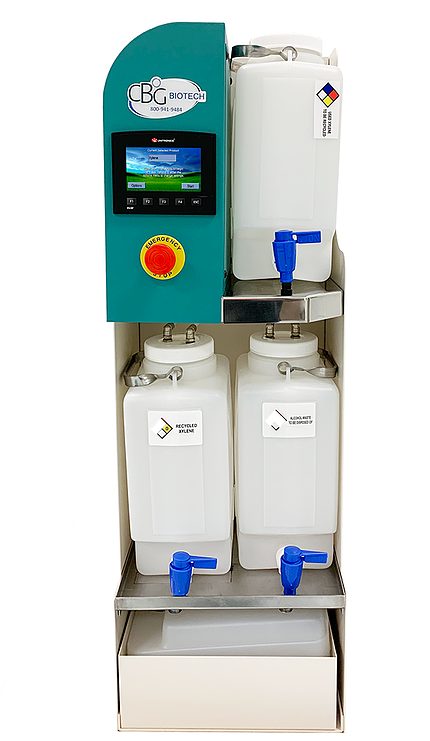

PathTrue™ Benchtop Solvent Recycler
The PathTrue™ Benchtop Solvent Recycler is a fully automatic fractional distillation system for xylene, alcohol, acetone and xylene substitutes. Featuring built-in spill containment and leak prevention design, this system satisfies the latest Uniform Fire Code (UFC) requirements for solvent distillation units, while not requiring water hook-up or special ventilation.
Benefits and Features
- Fractional distillation
- Greater gallons per hour recovery resulting in shorter cycle times and stronger yield
- Recycle xylene at 55 minutes per gallon*
- Recycle alcohol at 85 minutes per gallon*
* run times may vary with solvent mixture ratios,
solvent reuse cycles and waste concentrations - Microprocessor controlled; fully-automated
- Automatic waste disposal
- Stainless steel construction
- Spill containment and leak prevention design
- Quiet operation
- Sustainable environmentally and economically
- 1 Year warranty
Dimensions
13" W x 39" H x 23" D (33 cm W x 99 cm H x 59 cm D)
Electrical Configuration
20 VAC, 15.0 A, 50/60 Hz220 VAC,
7.5 A, 50/60 Hz240 VAC,
8.2 A, 50/60 Hz
Capacity
2.5 gallon (10 liter)
Compliance with
ETL listed to UL61010 and UL2208

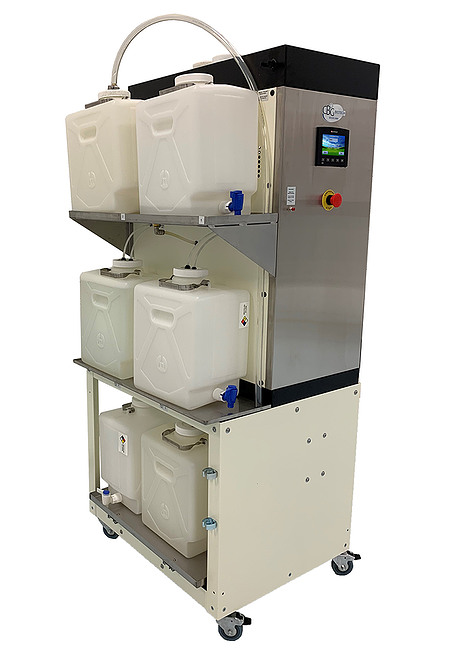

PathTrue™ Cart-Mounted Solvent Recycler
The PathTrue™ Cart-Mounted Solvent Recycler is a mobile cart-mounted fractional distillation system for xylene, alcohol, acetone and xylene substitutes. The automatic system features an electric fill pump and stainless steel recovered solvent shelves, drain port and an ergonomic friendly slide out waste tray for ease-of-use and cleaning.
Benefits and Features
Fractional distillation
Greater gallons per hour recovery resulting in shorter cycle times and stronger yield
Recycle xylene at 55 minutes per gallon*
Recycle alcohol at 85 minutes per gallon*
* run times may vary with solvent mixture ratios,
solvent reuse cycles and waste concentrations
Microprocessor controlled; fully-automatedAutomatic waste disposalStainless steel construction
Spill containment and leak prevention design
Quiet operation
Sustainable environmentally and economically
1 Year warranty
Dimensions
24.25" W x 67" H x 30.5" D (62 cm W x 170 cm H x 77 cm D)
Plus 4" (10 cm) shelf/shroud on side
Capacity
2.5 gallon (10 liter)
5 gallon (20 liter)
10 gallon (40 liter)
Electrical Configuration
120 VAC, 15.0 A, 50/60 Hz220 VAC,
7.5 A, 50/60 Hz240 VAC,
8.2 A, 50/60 Hz
Compliance with
ETL listed to UL61010 and UL2208

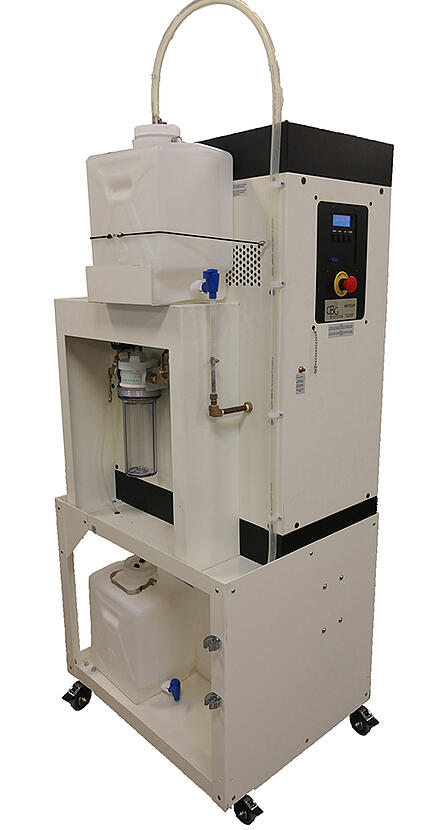

PathTrue™ Formalin Recycler
PathTrue™ Formalin Recyclers are a fully automatic fractional distillation systems for recycling formalin in pathology and histology laboratories.
Save your lab time and money by recycling formalin back to its original purity.
Benefits and Features
- Recycle formalin at approximately 120 minutes per gallon
- Spill containment and leak prevention design
- No cool-down between runs
- No hot surfaces - cool to touch
- Microprocessor controlled; fully-automated formalin recycling process
- Automatic waste disposal
- No water hook-up or special ventilation required
- 1 Year warranty
Dimensions
24.25" W x 67" H x 30.5" D (62 cm W x 170 cm H x 77 cm D)
Plus 4" (10 cm) shroud on side
Electrical Configuration
120 VAC, 15.0 A, 50/60 Hz
220 VAC, 7.5 A, 50/60 Hz
240 VAC, 8.2 A, 50/60 Hz
Capacity
5 gallon (20 liter)
10 gallon (40 liter)
Cycle Times
Approximately 120 minutes per gallon
Compliance with
ETL listed to UL61010 and UL2208

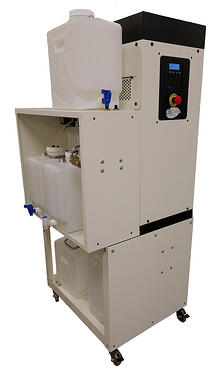

PathTrue™ FormaSolve™ Recycler
Recycle Xylene, Alcohol and Acetone with 90-95% Recovery and Formalin with 80% Recovery
PathTrue™ FormaSolve™ Recyclers are flexible fractional distillation systems for recycling a combination of laboratory solvents including formalin, xylene, alcohol and xylene substitutes in pathology, histology, chemistry and research laboratories.Achieve sustainability and cost savings in your lab with solvent recycling.
Benefits and Features
- Recycle xylene at 60 to 75 minutes per gallon
- Recycle formalin at approximately 120 minutes per gallon
- Recycle alcohol at 90 to 115 minutes per gallon
- No cool-down between runs
- No hot surfaces - cool to touch
- Spill containment and leak prevention design
- Microprocessor controlled; fully-automated formalin recycling process
- Automatic waste disposal
- No water hook-up or special ventilation required
- 1 Year warranty
Dimensions
24.25" W x 67" H x 30.5" D (62 cm W x 170 cm H x 77 cm D)
Plus 4" (10 cm) shroud on side
Electrical Configuration
120 VAC, 15.0 A, 50/60 Hz
220 VAC, 7.5 A, 50/60 Hz
240 VAC, 8.2 A, 50/60 Hz
Capacity
5 gallon (20 liter)
Cycle Times
Recycle xylene at 60 to 75 minutes per gallon
Recycle alcohol at 90 to 115 minutes per gallon
Recycle formalin at approximately 120 minutes per gallon
Compliance with
ETL listed to UL61010 and UL2208
